RGB+W Controller Module - 5 PIN
RGB+W Controller Module - 5 PIN
RGB+W Bluetooth & RF Controller allows dual control from a bluetooth app or a back up handheld remote. Controller also includes brake override option which will turn the kit on and to RD if it is wiRD to your positive brake wire as well as a white override function that can be used to turn the kit white with a dome switch or courtesy light. Controller will retain last function if power is removed then applied or placed on a switch.

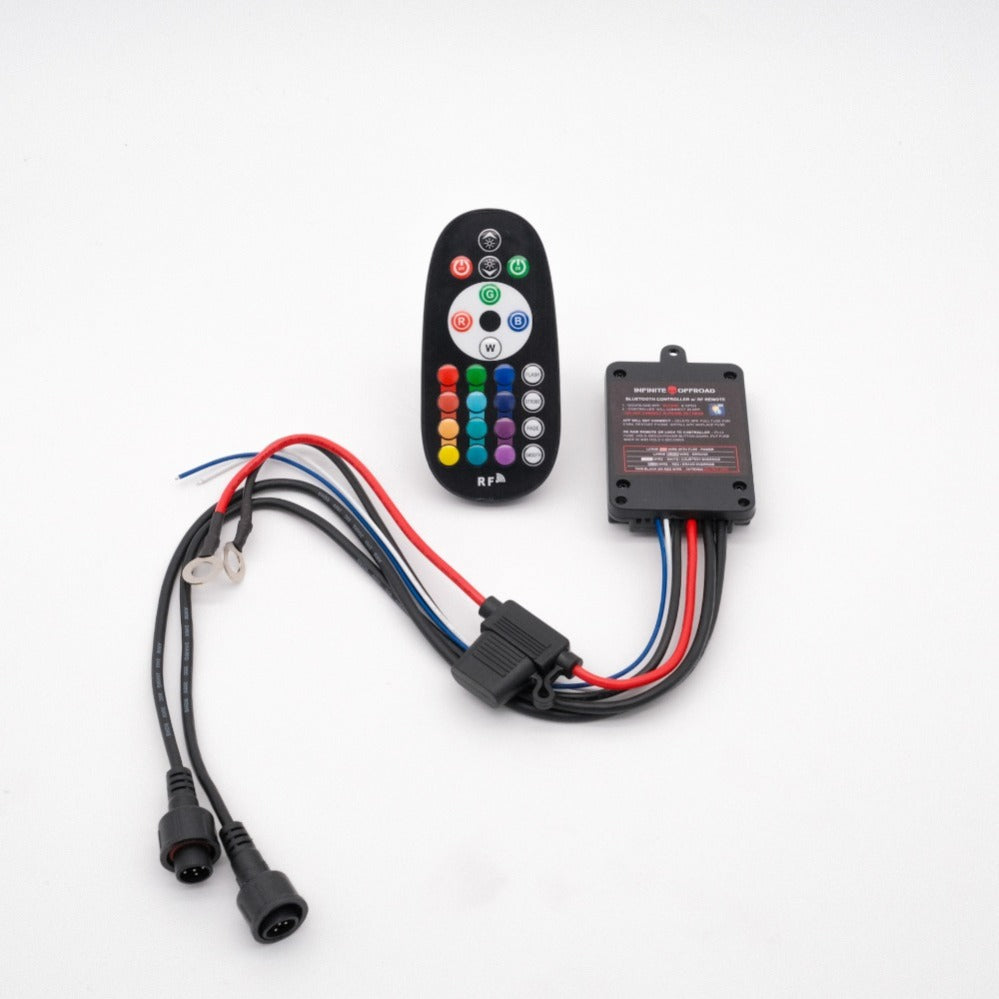

5 PIN RGB+W STANDARD CONTROLLER
APP "BLEDIM"
Allows control of 1 zone, capable of handing up to 12 rock lights and whips or wheel rings. Activation wire for brake & white override.

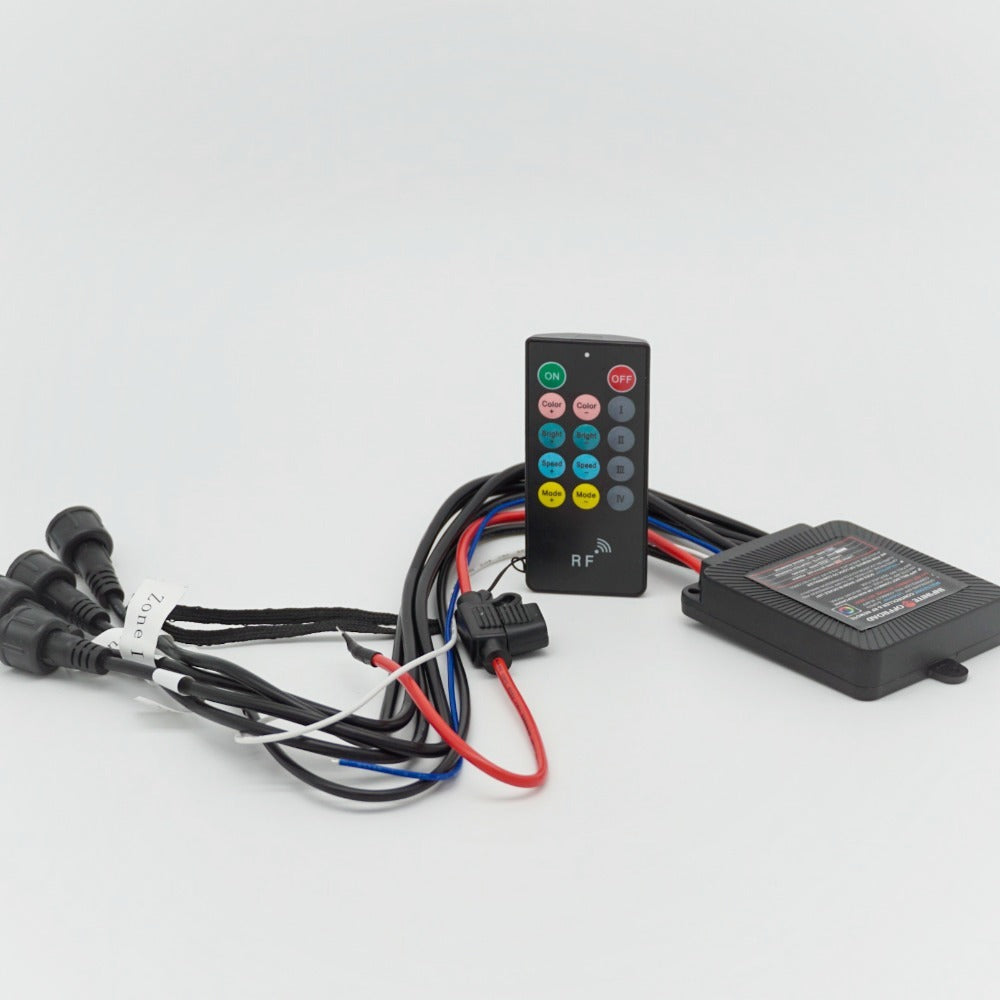

5 PIN 4 ZONE HIGH OUTPUT 30AMP & 50 AMP CONTROLLER
**FOR 50 AMP CONTACT US TO SEE IF NEEDED, DOES NOT MAKE BRIGHTER JUST ADS ADDITIONAL CAPACITY**
APP "LEDSHOW"
Allows 4 separate zones to be independently controlled or linked multiple zones for simultaneous control from the bluetooth app or a back up handheld remote. This high output controller can run up to 40 of our 12w rock lights. We recommend level loading the zones as much as possible. For example if your running 24 lights spread them out over all 4 zones. We don't recommend more than 10-12 of the 12w on a single zone. Activation wire for brake & white override.
5 PIN 2 ZONE TURN SIGNAL HIGH OUTPUT 30AMP CONTROLLER
APP "LEDSHOW"
Allows turn signal functionality with 2 separate zones to be independently controlled or linked multiple zones for simultaneous control from the bluetooth app or a back up handheld remote. This high output controller can run up to 40 of our 12w rock lights. We recommend level loading the zones as much as possible. For example if your running 24 lights spread them out over all 4 zones. We don't recommend more than 10-12 of the 12w on a single zone. Activation wire for brake, white override, left amber and right amber. Activation wire for brake, white override, left and right turn signal. When turn signal turns on opposite side will turn to white and stay white until turn signal is turned off.

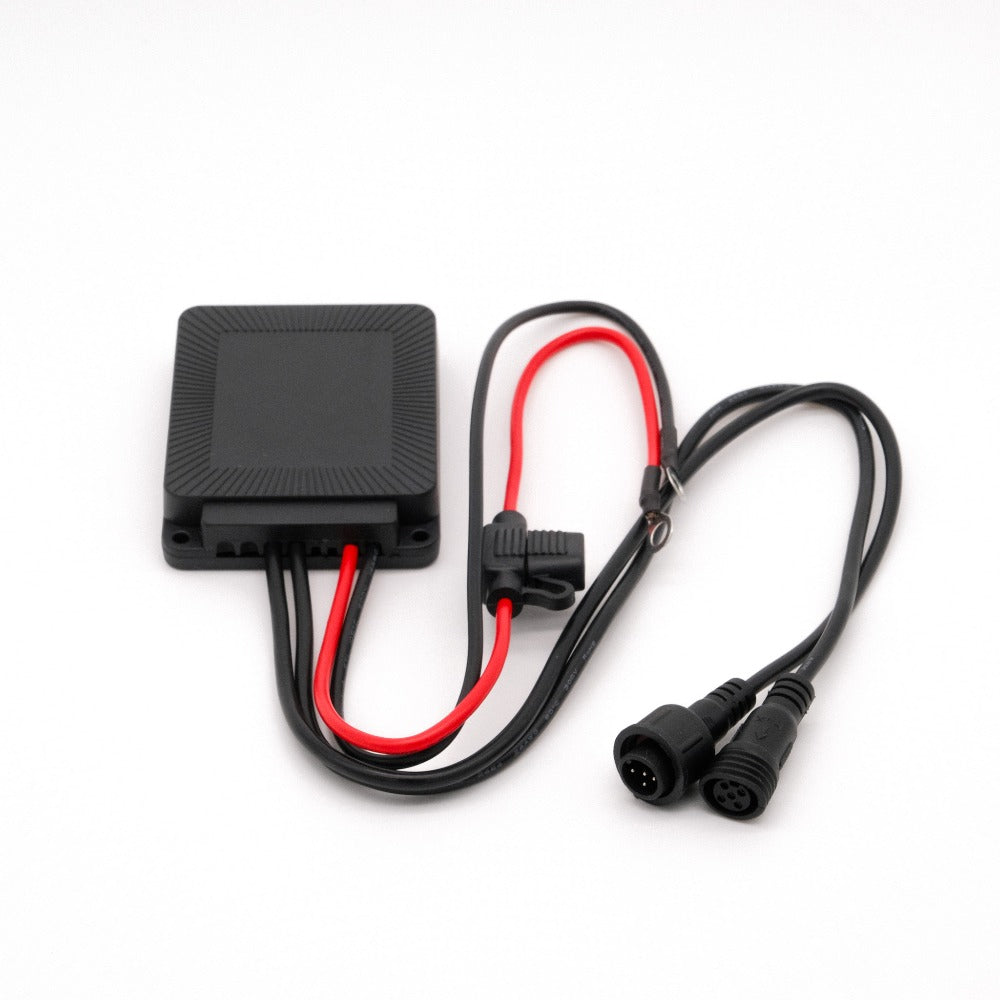

5 PIN BOOSTER
Does not replace controller. Used for long runs of strips or areas where you may see some color drop in systems/installs running large qty's of lights. Plugs into 12v power and plug in line the system to boost an area.
4 PIN RGB OLDER STYLE CONTROLLER
Replaces GEN 1 4 pin RGB controllers.
SPECS:
-25YR WARRANTY (INCLUDES ACCIDENTAL)
-BRIGHTER AND WIDER PATTERN THAN MOST COMPETITORS
-PLUG AND PLAY WIRING HARNESS
-IP68 WATERPROOF
-FULLY MODULAR ADD ON LIGHTS AT ANY TIME EASILY
STANDARD CONTROLLER - DOWNLOAD INST. & APP

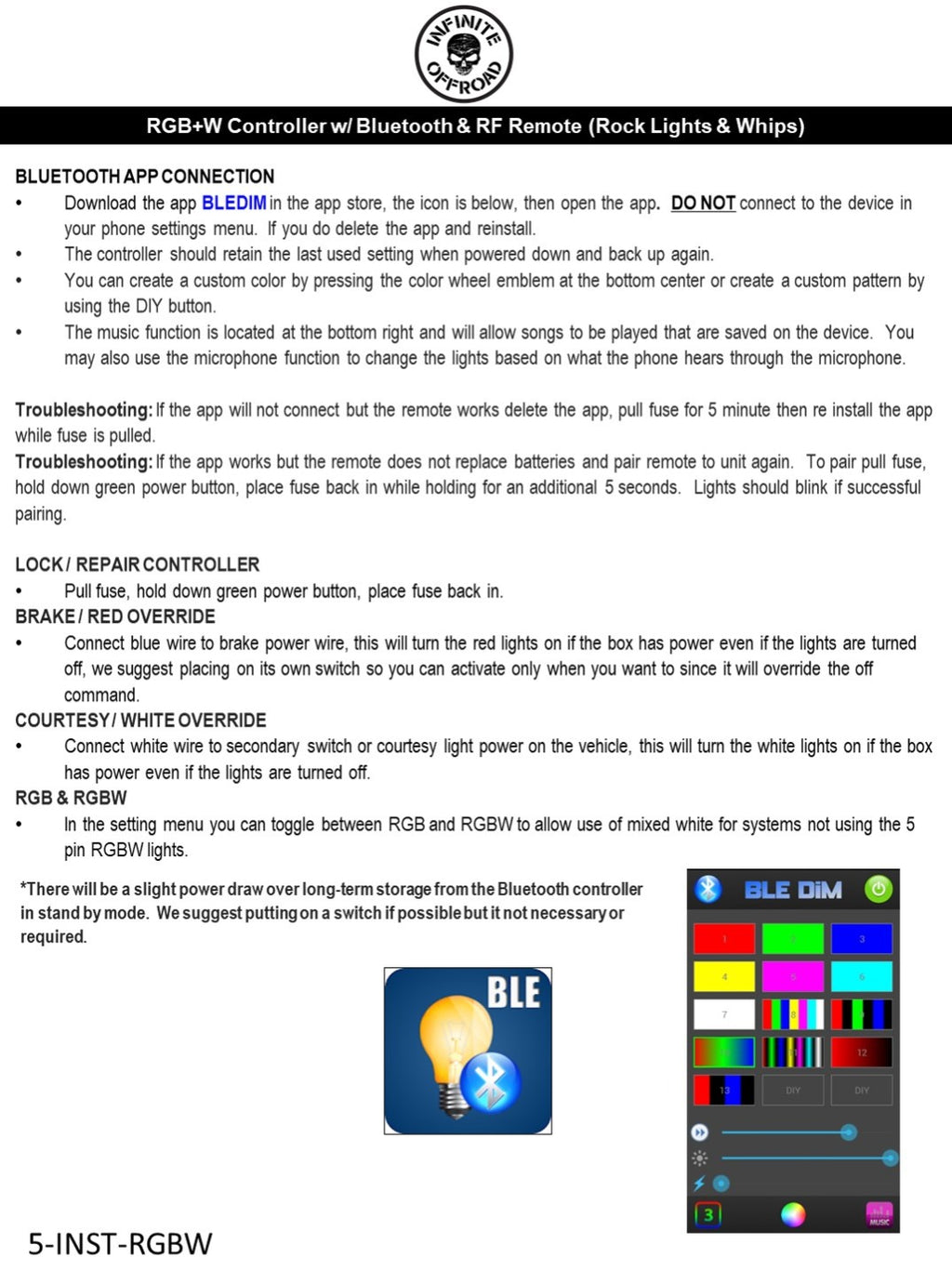

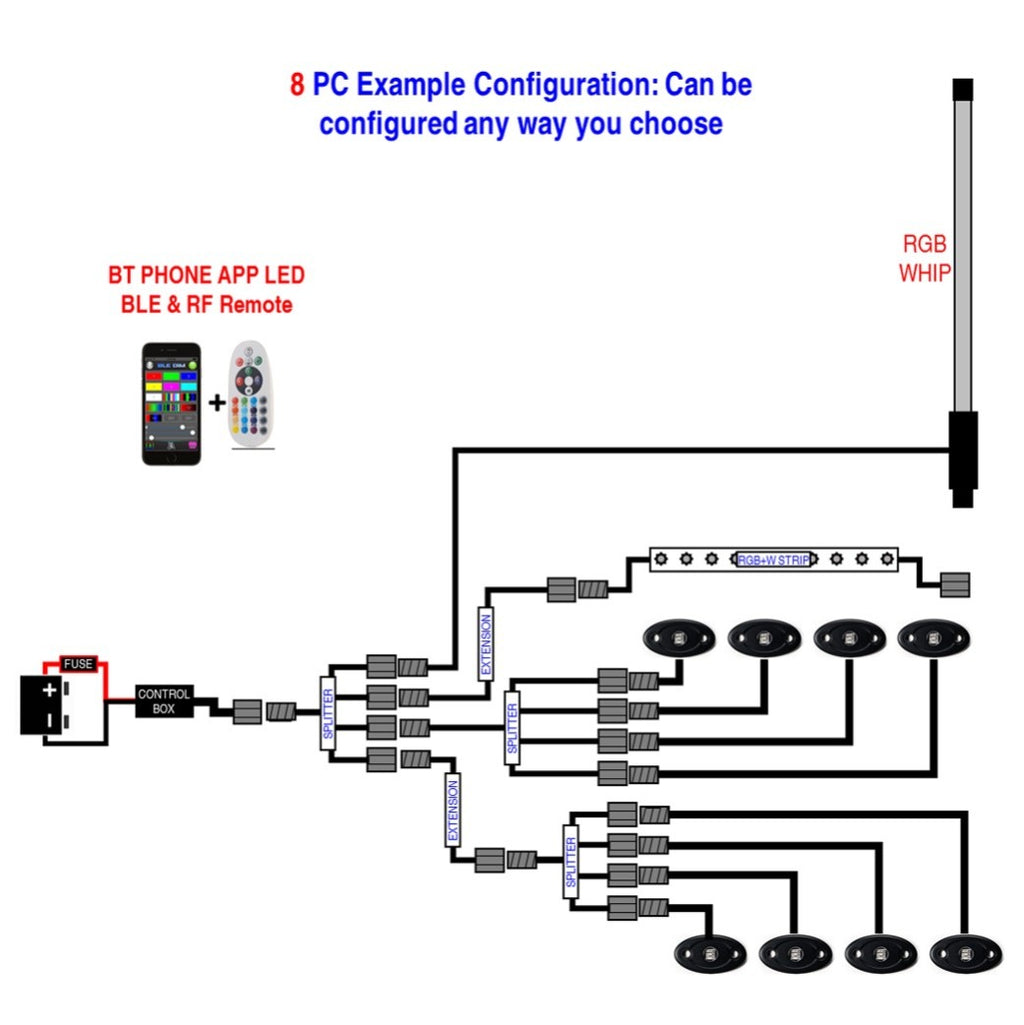

DOWNLOAD INSTRUCTIONS & DIAGRAM
APP BLEDIM: Click APPLE or ANDROID to Download the app
MULTIZONE CONTROLLER - DOWNLOAD INST. & APP

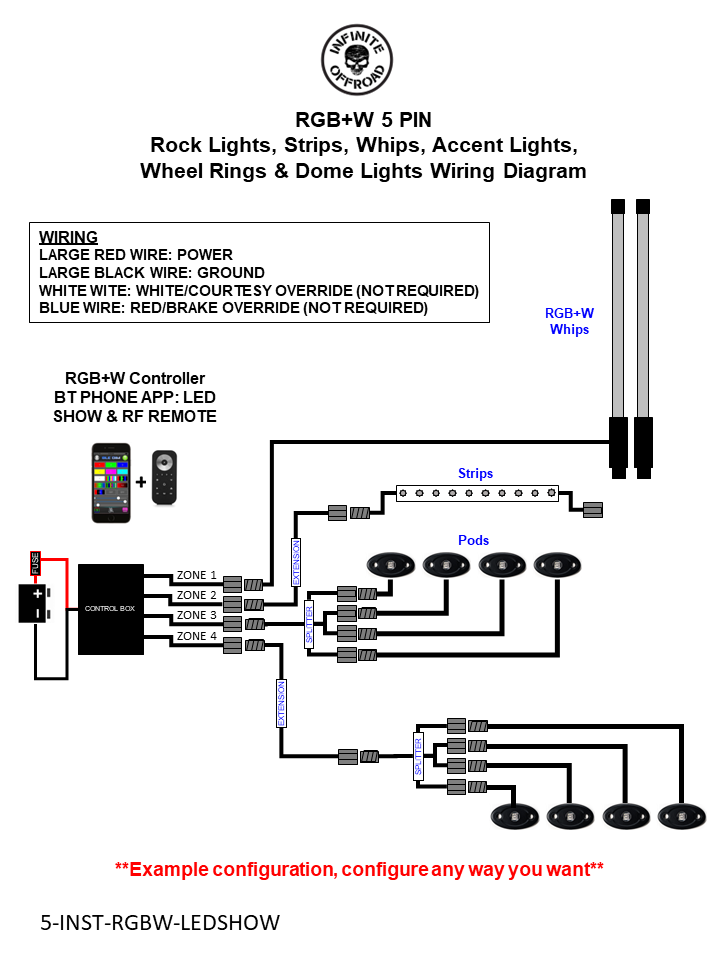

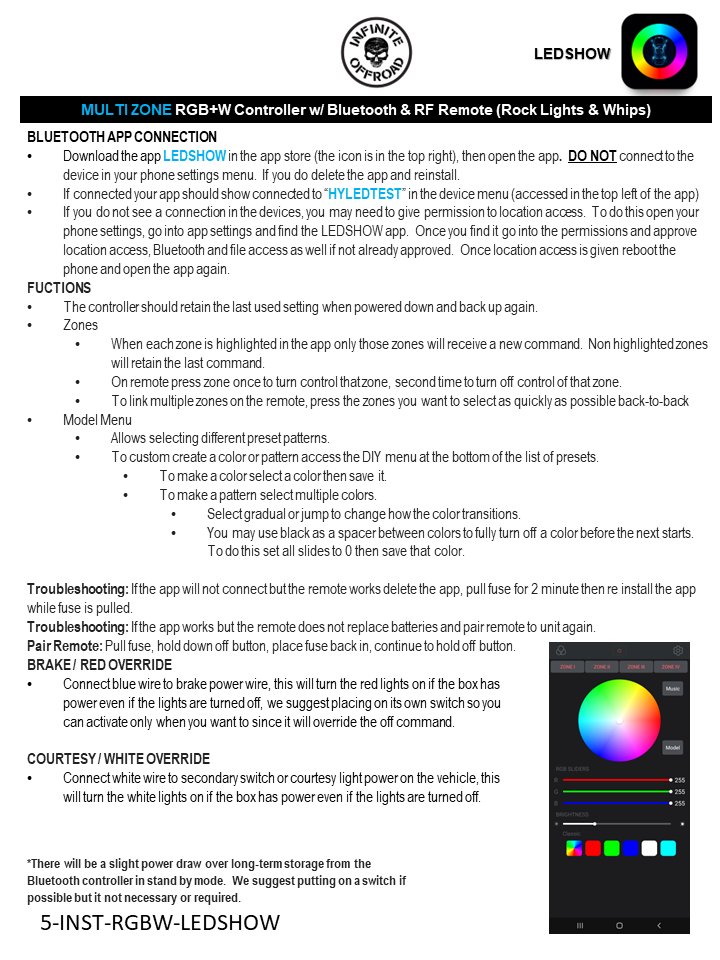

DOWNLOAD INSTRUCTIONS & DIAGRAM
APP LEDSHOW: Click APPLE or ANDROID to Download the app
CONTROLLER DETAILS
Requires phone to use BT control via app. Also includes extra RF remote, remote does not require line of sight it is paiRD with the controller.
BRAKE/RD OVER RIDE: Connect blue wire to brake power wire, this will turn on RD even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.
COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.
TURN SIGNAL OPTION: Turn signal controller offers left and right turn signal activation wire, when either wire receives 12v power it will blink amber and the oposite zone will turn white.
*Additional instuctions can be downloaded*
